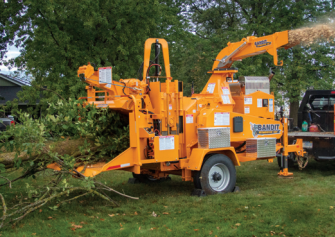

An extremely productive drum-style chipper with an 18" capacity is the IntimidatorTM 18XP. 4,480 pounds of pulling strength are provided by its strong twin feed wheel system, which is powered by two 32.3 CID hydraulic motors. Additionally, the standard hydraulic lift cylinder improves performance by supplying more down pressure, which lessens the workload for the chainsaw.
The robustness of the infeed is improved by user-friendly features like the sturdy infeed tray with HD rim. It is simpler for the feed system to compress limbs into the chipper's throat when using 25-inch wide feed wheels rather than the typical 20-inch ones.
There are gas and diesel engine variants with 120–174 horsepower. The machine can weigh under 10,000 pounds in the majority of setups.
● 120 to 174 gas and diesel engine options available
● 37" diameter x 22" wide drum with four knives
● (2) 10 5/8" diameter x 20" wide feed wheels with bottom clean out door
● (2) 32.3 CID hydraulic motors
● 33 3/4" high x 64" wide infeed with folding tray
● Single 10,000 pound axle with (2) 215/75R 17.5" tires
● 360 degree hand crank dicharge chute with end chip deflector (height adjustable)
● Bandit control panel with reversing auto feed
● Standard hydraulic lift cylinder
● Optional Hydraulic winch
● Optional solid infeed tray with heavy-duty rim
● Optional 25" wide feed wheels
PROOF OF CONQUEST
The Intimidator 18XP will overcome and conquer the challenges presented by the wildest of trees and branches. A large throat opening and Bandit's proven slide box feed system aid in gathering and crushing both limby and fibrous material. The large, heavily-reinforced 37" diameter drum then smoothly and effectively powers through the material with authority because of increased torque, yet requiring less horsepower. This system reduces trimming time, labor costs, operator fatigue, and fuel costs while increasing production -- a concept proven time and time again by any Bandit chipper.
MAXIMUM UPTIME
Rugged construction and heavy-duty components throughout the Intimidator 18XP help ensure long life and trouble-free performance. We realize what it costs when a chipper is down, and we do our best to minimize it. That's why maintenance items are positioned for easy access and designed to be more serviceable in the field. Bandit chippers have proven over time to be the best decision you can make for a long-term investment in a brush chipper.
CHOOSE YOUR BUILD
From customizable engine, chassis, and feed system configurations to optional user-friendly features, your Intimidator 18XP can be setup with features and functions specific to your intended use. Gasoline and diesel engine options are available. Popular upgrades include a solid infeed tray with a heavy-duty rim, wider feed wheels, and a hydraulic winch to accompany the already-standard hydraulic lift cylinder. A wide array of choices allow you to make the 18XP your machine instead of a standard machine. Most arrangements of components can keep the machine under 10,000 pounds.
SPECIFICATIONS
|
MEASUREMENTS |
IMPERIAL |
METRIC |
|
Length |
20'2" |
614.7 cm |
|
Width |
7'4" |
223.5 cm |
|
Height |
8'8" |
264.2 cm |
|
Weight |
9,700 lbs. |
4,400 kg |
|
Engines |
120 - 174 HP (89.5 - 130 kW) |
|
|
Fuel Tank |
30 gallon |
94.6 L |
|
Hydraulic Tank |
12 gallon |
45.4 L |
|
UNDERCARRIAGES |
|
Standard: Single 10,000 lb. (4,536 kg) axle with (2) ST215/75R 17.5" (44.5 cm) tires mounted on 8-bolt heavy-duty gray rims |
Standard & Custom Colors Available
Choose from two standard colors, or select a custom color to match your fleet.
| DIMENSIONS | ||
|
Capacity |
18" |
45.7 cm |
|
Opening |
20.5"high x 20.83"wide |
52 cm high x 52.9 cm wide |
|
Drum |
37"dia. x 22"wide |
94 cm dia. x 55.9 cm wide |
|
RPM |
Approximately 1,080 RPM |
|
|
Hitch: 2-1/2"pintle hitch |
||
|
Discharge: Height-adjustable, 360° hand crank swivel with 12" (30.5 cm) adjustable chip deflector |
||
|
Feed System: Slide box feed system with (2) 21"(53 cm) adjustable down pressure springs, (2) 10-5/8"diameter x 20" wide feed wheels (27 cm x 50.8 cm) powered by (2) 32.3 CID hydraulic motors |
||
|
Frame: Mainframe is constructed of 3/16"x 2"x 6"rectangular tubing (0.48 x 5.1 x 15.24 cm) |
||
COMMITTED TO QUALITY & PRODUCTIVITY
Since 1983, Bandit has manufactured equipment for a multitude of wood waste processing markets. The vision since the beginning, is to build quality, highly productive, easy to maintain equipment providing years of dependable service.
The commitment for quality, innovation and dedication is instilled in every employee and is one of the main reasons why Bandit became an Employee-Owned Company (ESOP) in 2018. These core values ensure each Bandit machine will leave the factory ready to exceed your expectations.
INTIMIDATOR™ 18XP FEATURES
Rope/Line Shear Device (standard)
Provides an improved chance that rope or lines inadvertently entering the chipper may be cut
Last Chance Cables (standard)
Stops/reverses the feed wheel when pulled in case of an emergency
Operator Safety Control Bar (standard)
Wraps around 3 sides of the infeed chute & controls the direction of feed wheels
Wood Pusher Paddle (standard)
Used to feed small wood debris into the chipper
Chipper Hood Pin w/Padlock (standard)
Prevents unauthorized access to the disc or drum
Chipper Hood Engine Disable Plug (standard)
Prevents engine from being started without the hood pin in place
Hydraulic Bottom Bump Bar (option)
Stops feed wheels via mechanical connection when bumped, diverting hydraulic power away from the feed wheels
