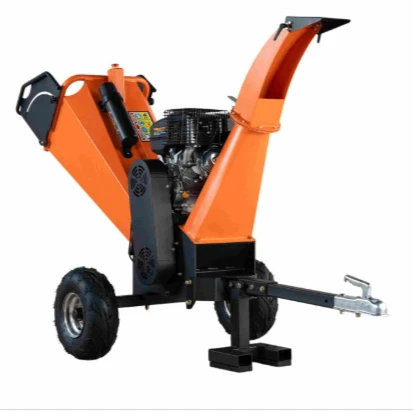

15HP Towable Drum Style Wood Chipper

The SIVFORX GS120-121 Drum Wood Chipper is a high-performance, towable wood chipping machine designed for landscape maintenance, orchard management, small-scale timber processing, and hobby farms. Powered by a 15 HP 420cc gasoline engine with a drum-type cutting system, it handles branches up to 120 mm in diameter, efficiently turning tree limbs, brush, and woody debris into uniform wood chips - the ideal solution for waste reduction, resource recycling, and cost savings on debris disposal.

Founded in 2012, SIVFORX has specialized in outdoor power equipment R&D and manufacturing for over a decade. Our products are exported to 30+ countries across Southeast Asia, the Middle East, South America, and Africa, earning widespread trust for their reliability, durability, and outstanding value.

Ideal For: Landscaping | Orchard Maintenance | Forestry Cleanup | Hobby Farms | Municipal Upkeep | Biomass Feedstock Processing

Powerful & Efficient
Driven by a 15 HP / 420cc 4-stroke gasoline engine, the GS120-121 delivers ample torque and smooth operation. The drum cutting system, with dual moving blades and a fixed counter blade, effortlessly chips hardwood branches up to 120 mm in diameter. Output chips are uniform and clean.


Electric Start - Effortless Ignition
The standard electric start system allows one-key ignition - no more exhausting pull-starts. A backup recoil starter is also included for peace of mind during remote field operations.


All-Terrain Mobility
Equipped with 16-inch all-terrain pneumatic tires and a standard ball-hitch tow bar, the GS120-121 can be easily towed behind pickup trucks, ATVs, tractors, or utility vehicles. It navigates mud, grass, gravel, and slopes with ease - simply hitch and go.


User-Friendly Design
Foldable Hopper:
●Folds down during transport to save space; expands during operation for easy feeding.
360° Rotatable Discharge Chute:
●Direct chips exactly where you need them - into a collection bag, trailer, or pile.
Adjustable Support Leg:
●Keeps the machine stable during stationary operation, reducing vibration.


Safe & Durable
●Emergency stop safety switch cuts power instantly in unexpected situations.
●High-carbon alloy steel blades are wear-resistant, impact-tolerant, and resharpenable for extended service life.
●The reinforced steel plate frame resists torsion and withstands demanding, continuous-duty operation.


Easy Maintenance, Low Operating Cost
●Blade replacement and sharpening are straightforward - most users can do it themselves.
●Engine maintenance points (oil, air filter, spark plug) are laid out for convenient access.
●Excellent fuel economy keeps total cost of ownership low.

Drum Cutting Technology
The high-speed drum rotor generates powerful cutting force, chipping material instantly upon entry - far more efficient than disc-type models.

Self-Feeding Design
The drum rotor's inherent pulling action assists material feed, reducing the physical effort required by the operator. An anti-kickback guard enhances safety.


Dual-Blade + Fixed Knife Synergy
Moving blades handle coarse cutting; the fixed bed knife ensures fine finishing. Output chip size is consistently controlled between 10–30 mm - ideal for mulch, compost feedstock, or biomass fuel.

Overload Protection
The engine governor automatically reduces speed when encountering oversized material or foreign objects, protecting blades and drivetrain components.


Vibration Dampening
The drum rotor is dynamically balanced, and coupled with the reinforced frame, this effectively suppresses operational vibration and prolongs machine life.

Landscaping & Municipal Maintenance
Branches, brush, and shrub trimmings from parks, residential communities, and roadside greenery can be chipped on-site into mulch - eliminating haul-away costs and turning green waste into a valuable landscaping resource.


Orchards & Farm Management
Citrus groves, apple orchards, olive farms, and more generate massive pruning waste each season. The GS120-121 enters orchard rows for mobile chipping; wood chips can be returned to soil as mulch or used as animal bedding.


Forestry Cleanup & Fire Prevention
During forest thinning or firebreak maintenance, the GS120-121 rapidly processes small-diameter timber and brush, reducing combustible fuel loads and lowering wildfire risk.


Biomass Energy Feedstock
Uniform wood chips (15–25 mm) produced by the GS120-121 are ideal raw material for biomass pellet plants and biomass power stations - opening an additional revenue stream.


Hobby Farms & Estates
Large estates, private farms, and hobby farms benefit from the GS120-121's professional-grade chipping capability for routine tree and landscape maintenance.


Equipment Rental
Easy to operate, simple to transport - the GS120-121 is a top choice for equipment rental businesses. Short payback period and high rental demand make it a profitable addition to any rental fleet.

Blade Manufacturing
●Blades are forged from high-carbon alloy steel through a three-step process: drop forging → CNC grinding → vacuum heat treatment, achieving HRC 56–60 hardness with excellent edge retention and impact toughness.
●Each blade undergoes dynamic balancing inspection before assembly to ensure zero wobble at high RPM.
Rotor Machining
●The rotor main shaft is made from 40Cr alloy structural steel, quench-tempered and precision-machined, paired with premium bearings (NSK/SKF optional).
●After welding, the complete rotor assembly undergoes dynamic balancing with residual unbalance controlled to G6.3 grade or better.
Frame Manufacturing
●The frame is laser-cut from Q235B heavy-gauge steel plate and welded into a rigid unit. Critical welds undergo ultrasonic spot inspection to ensure structural integrity.
●Three-layer surface protection: sandblasting → epoxy primer → polyurethane topcoat, providing excellent weather resistance and rust protection for long-term outdoor storage.
Assembly & Testing
●Every completed unit undergoes a 30-minute loaded test run prior to shipment, covering: starting performance, idle stability, maximum chipping capacity, vibration levels, noise levels, safety switch response, and fastener torque verification.
●Each machine receives a unique serial number and factory certificate upon passing inspection.

Quality System
●Manufacturing facility is ISO 9001:2015 certified.
●Products comply with CE Machinery Directive (standard for EU-destined models).
●Engine emissions meet EPA / EU Stage V standards (configured per destination market). Inspection Stages

Inspection Stages

Batch Traceability
Each machine is assigned a unique serial number linked to its production batch, key component suppliers, and inspection records - enabling full traceability from raw materials to finished product.

Packing
Standard Export Packing:
●Steel frame + carton or fumigation-free plywood crate, with multi-layer internal cushioning (foam, bubble wrap, straps).
Bulk Option:
●For full-container orders, shrink-wrapped machine body + steel frame base is available to reduce packaging costs.
●External labeling includes: product name, model, serial number, net/gross weight, packing dimensions, lifting points, and moisture-protection symbols.

Storage
●Store in a dry, well-ventilated indoor or covered environment. Avoid prolonged outdoor exposure to rain.
●For long-term storage (over 3 months): drain fuel, change oil, and apply anti-rust oil to blade surfaces.
●Storage temperature: -10°C to 45°C; relative humidity ≤ 85%.

Handling
●Packing crates are marked with forklift slots and lifting points. Use a forklift or crane for loading/unloading.
●Manual handling requires at least 2 persons; pay attention to the center of gravity.

Transportation
●Supports road (truck/container), sea (20GP/40HQ container), and rail transport.
●Container loading reference:
20GP:
Approx. 18–22 units (depending on packing method)
40HQ:
Approx. 44–50 units (depending on packing method)

SIVFORX offers flexible customization to meet diverse market and customer requirements:

Case 1: Date Palm Plantation - Middle East
Customer: Large-scale date palm plantation (2,000 hectares)
Quantity: 5 units (trial order) + 20 units (follow-up)
Application: On-site chipping of palm fronds during annual pruning season, chips returned to soil
Client Feedback: "Before, we had to hire trucks to haul pruning waste away - very expensive. Now with SIVFORX chippers, we process everything on-site and spread chips around tree bases for moisture retention. It saves money and improves soil. We've ordered 20 more units for different plantation zones."


Case 2: Biomass Energy Company - South America
Customer: Biomass pellet fuel producer
Quantity: 8 × GS120-121
Application: Pre-shredding at raw material collection stations before transport to pellet plant
Client Feedback: "The GS120-121 produces uniform chips at 15–25 mm, perfect for our pelletizing process. Low fuel consumption, easy maintenance - 8 machines process about 30 tons of raw material daily. We're planning to purchase more next year."


Case 3: Equipment Rental Business - Africa
Customer: Construction & equipment rental company
Quantity: 15 units
Application: Short-term rental to farmers and landscape contractors
Client Feedback: "Super easy to operate - renters pick it up in about 10 minutes. The machines are tough and durable with very low repair rates. We recouped our investment within 6 months. The bright orange color gives great fleet visibility."


Case 4: Garden Equipment Distributor - Europe
Customer: Professional garden tools & equipment retail chain
Quantity: 60–80 units annually (ongoing partnership)
Application: Retail to end-user farmers and landscape service providers
Client Feedback: "SIVFORX is one of our best-selling chipper lines - the value for money far exceeds comparable models from European brands. Our customers are very happy with the CE certification and consistent quality. We are in talks for exclusive distribution rights."

10+ Years of Industry Expertise:
1. Manufacturing outdoor power equipment since 2012 with over 15,000 units delivered - quality you can trust.
Global Service Network:
2. 8 authorized after-sales service centers across Southeast Asia, the Middle East, Africa, and South America with reliable spare parts supply.
Flexible Customization:
3. From color to engine configuration, packaging to language versions - we respond fully to your market needs.
Continuous Innovation:
4. We invest 5% of annual sales revenue into new product development and process improvement.
Partnership-First Approach:
5. We treat every customer as a long-term partner, not a one-time transaction. From model selection advice and order tracking to after-sales support, you'll have a dedicated contact throughout.

Get in Touch
For product details, quotations, or to schedule a factory visit, reach out to our sales team today. We offer free selection consulting and live demo video presentations to help you make the best purchasing decision.
SIVFORX - Your Trusted Partner in Outdoor Power Equipment.
